Power settings instructions

Power settings instructions**

Power settings instructions

To successfully run a program that requires constant internet/network connection such as the smartphone application, or any workstation running Kennel Connection that is networked to one main computer, you must set your computer to never sleep.

Please note: The instructions below are to assist you with these changes.  If you cannot locate these settings or your operating system looks different, you will need to contact a local technician to assist you.

Computer and Hard drive sleep options

  • Click the Windows Search bar. Type in "Control" and look up to the search results.  Click on "Control Panel".

A screenshot of a computer AI-generated content may be incorrect.

  • In the upper right-hand corner of the control panel, make sure your "View" is set to "Small Icons".



A screenshot of a computer AI-generated content may be incorrect.

  • Choose "Power Options".

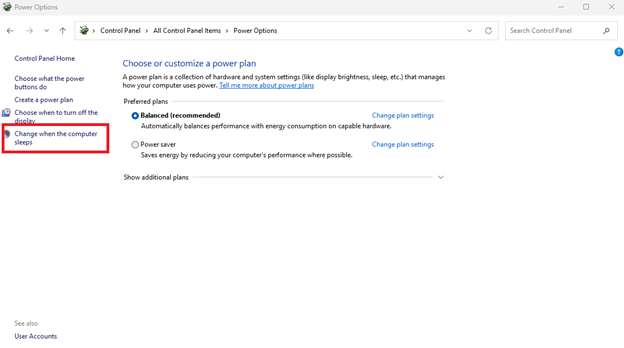

  • On the left, click “Change when the computer sleeps”

A screenshot of a computer AI-generated content may be incorrect.

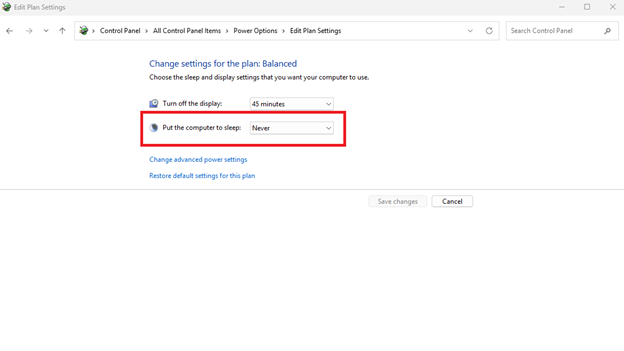

  • Where it says, "Put the computer to sleep", change to "Never", then click Save Changes.

A screenshot of a computer AI-generated content may be incorrect.

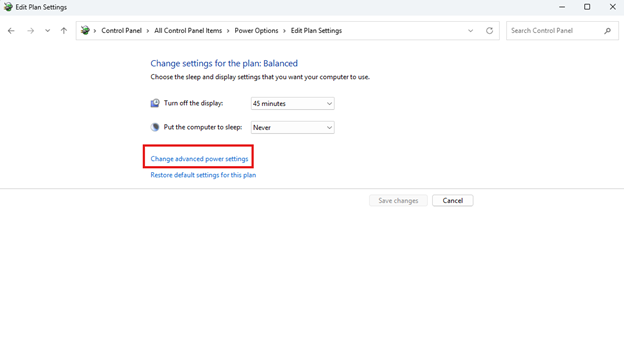

  • Go back into Power Options and click on "Change advanced power settings".

A screenshot of a computer AI-generated content may be incorrect.

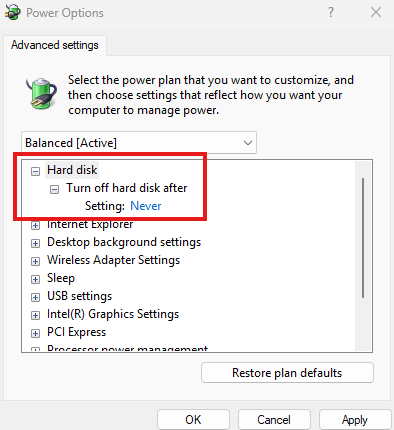

  • Locate "Hard disk" and expand it.  If your "Turn off hard disk after" setting shows a number, click in the box, delete the number and type the word "Never" without the quotations.

A screenshot of a computer AI-generated content may be incorrect.

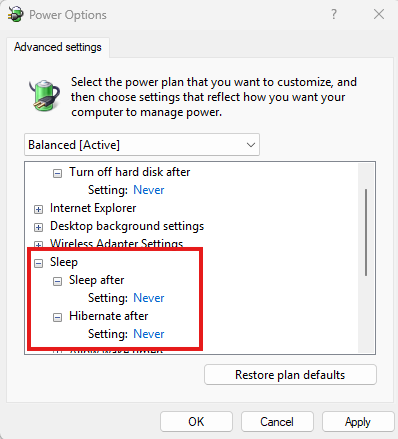

  • Next, look for the "Sleep" option and expand it.  Set "Sleep after" and "Hibernate after" both to "Never" without the quotations.

A screenshot of a computer settings screen AI-generated content may be incorrect.

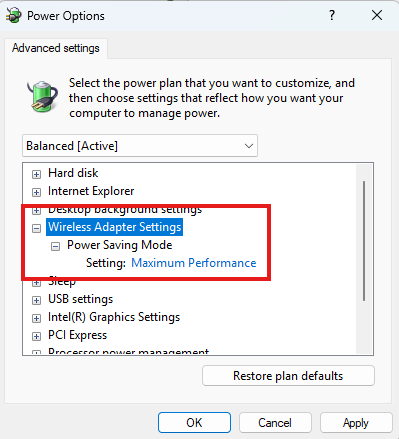

  • If you are running WIFI, expand the "Wireless Adapter Settings" and make sure it is set to "Maximum Performance".

A screenshot of a computer AI-generated content may be incorrect.

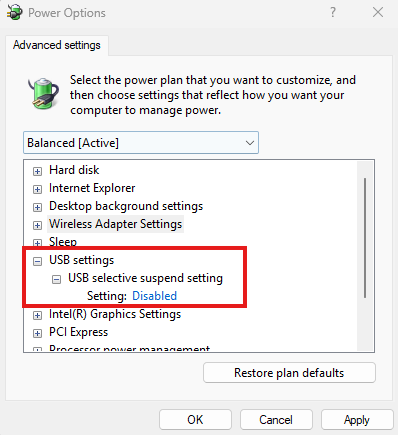

  • If you use any USB hardware devices such as the USB cash drawer or other items, you must disable the USB Selective Suspend Feature as this will stop your devices from working. Expand the USB option and expand the USB selective suspend option and set it to Disabled.



A screenshot of a computer settings AI-generated content may be incorrect.

Network card sleep options

  • Open your Windows Control Panel using the instructions from the previous section.
  • Make sure your Windows Control Panel is set to "small icons or classic view".
  • Locate "Network and Sharing Center".

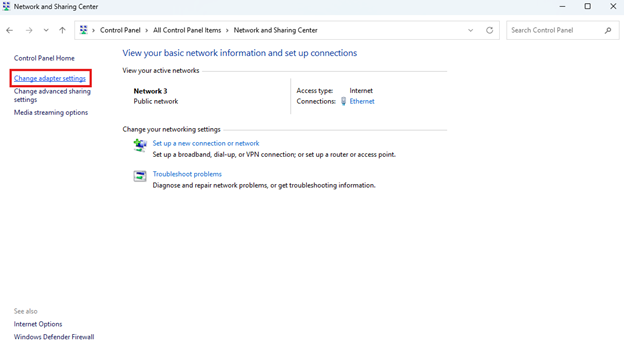

  • Inside here, in the upper left hand corner, click on "Change Adapater settings".

A screenshot of a computer AI-generated content may be incorrect.

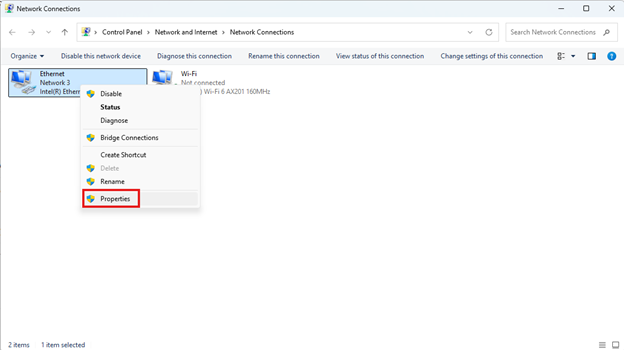

  • Click on your active connection so that it is highlighted.  Right click on it and choose "Properties".

A screenshot of a computer AI-generated content may be incorrect.

  • Click on "Configure".

A screenshot of a computer AI-generated content may be incorrect.

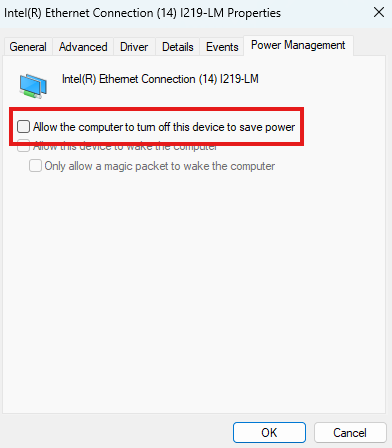

  • Choose the "Power Management" tab.   Remove the check mark from "Allow the computer to turn off this device to save power".

A screenshot of a computer AI-generated content may be incorrect.

  • Click OK and exit out of the Control Panel

Note: If you do not have a Power Management tab, then you can skip this step.
